In ATLAS all access to event trigger decision is via the Trigger Decision Tool (TDT). There is quite a bit of information attached to the trigger, and its layout is quite complex - for that reason one should use the TDT to access the data. It is not really possible for a human to navigate the data structures quickly!

import matplotlib.pyplot as plt
from config import ds_zee as ds
from func_adl_servicex_xaodr21 import tdt_chain_fired, tmt_match_object

---------------------------------------------------------------------------
ImportError                               Traceback (most recent call last)
Cell In[1], line 2
      1 import matplotlib.pyplot as plt
----> 2 from config import ds_zee as ds
      3 from func_adl_servicex_xaodr21 import tdt_chain_fired, tmt_match_object

ImportError: cannot import name 'ds_zee' from 'config' (/home/rjanusia/WorkingDirectory/IrisHep/xaod_usage/book/chapters/config.py)

Looking for events that fired a chain#

Lets look at \(Z \rightarrow ee\) Monte Carlo for a single electron trigger in the event.

n_electrons = (ds.Select(lambda e:
                            {
                                "n_ele": e.Electrons().Where(lambda e: abs(e.eta()) < 2.5).Count(),
                                "fired": tdt_chain_fired("HLT_e60_lhmedium_nod0"),
                            })
                .AsAwkwardArray()
                .value()
               )

plt.hist(n_electrons.n_ele, bins=4, range=(0, 4), label='All Events')
plt.hist(n_electrons.n_ele[n_electrons.fired], bins=4, range=(0, 4), label='Fired Events')
plt.xlabel('Number of Electrons')
plt.ylabel('Number of Events')
plt.title('Electron Trigger and Number of Electrons in the Event')
_ = plt.legend()

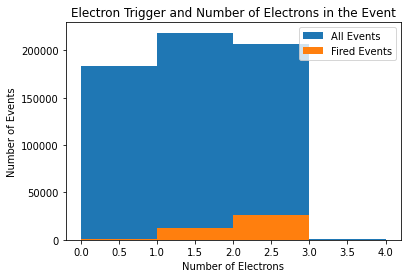

../_images/d8d2fc4ff5709b5bc29844b48070fa5f5107601ac3ee4a8d3faaade60aba0c04.png

Trigger Matching#

Next, let’s find the electrons that matched that trigger that fired above. We’ll do this by looking only at events where the trigger has fired, and then asking each electron if it matches withing a \(\Delta R\).

matched_electrons = (
    ds.Where(lambda e: tdt_chain_fired("HLT_e60_lhmedium_nod0"))
    .SelectMany(lambda e: e.Electrons())
    .Select(
        lambda e: {
            "pt": e.pt() / 1001.0,
            "eta": e.eta(),
            "is_trig": tmt_match_object("HLT_e60_lhmedium_nod0", e, 0.7),
        }
    )
    .AsAwkwardArray()
    .value()
)

To know the tnt_match_object arguments, you’ll need to look up its definition below on the atlas twiki.

plt.hist(matched_electrons.pt, bins=100, range=(0, 100), label='All Electrons')
trigger_electrons = matched_electrons[matched_electrons.is_trig]
plt.hist(trigger_electrons.pt, bins=100, range=(0, 100), label='Trigger Electrons')
plt.xlabel('Electron $p_T$ [GeV]')
plt.ylabel('Number of Electrons')
_ = plt.legend()

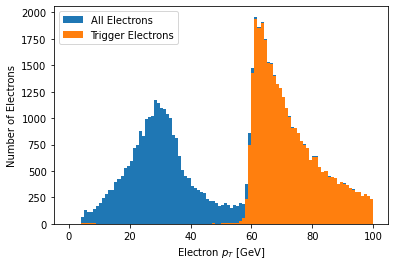

../_images/ab3ca75f0ec4dcea5a2f8a27051f33db4ad3af4775ed212e1539fd30c16ba9e4.png
